Name: Zinc / GI U-Roll Step Flashing (Metal Deck Step / Valley Flashing)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

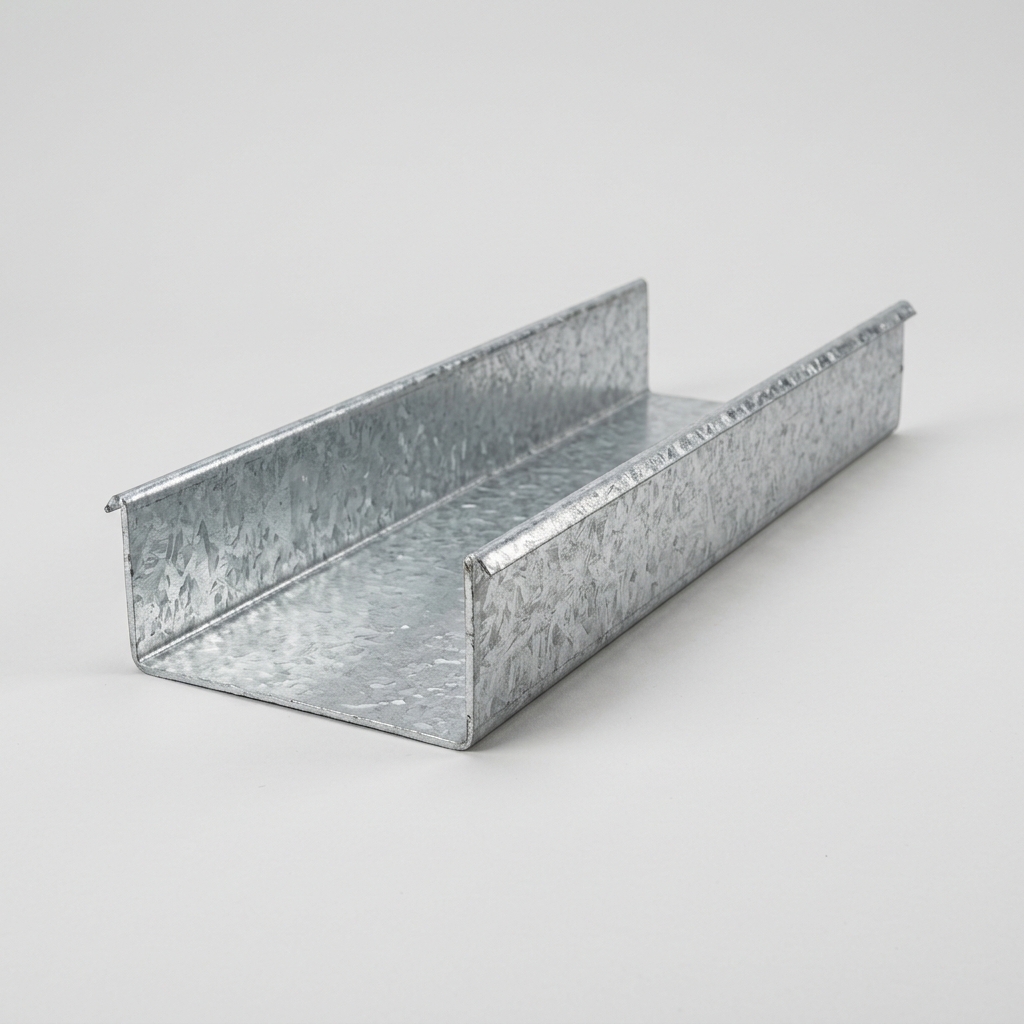

Zinc / GI U-roll step flashing is a press-formed hot-dip galvanised U-channel or step-profile piece used as valley flashing at the internal angle where two roof slopes meet, and as step flashing at the junction between a roof slope and a vertical wall in Malaysian metal deck and corrugated GI roofing. Piece size is 12 in wide (step-cut); gauge G22–G30; sold per piece or per linear metre run. The U-roll profile collects rainwater at the valley and channels it into gutters, preventing wind-driven monsoon rain from infiltrating behind wall cladding. Available in multiple gauges to match adjacent roof sheeting. HS 7210619200 · import duty 15% · SST 5%. Distinct from Type 1/2 apron flashings — the U-roll addresses valley and wall-abutment waterproofing.

UNIT OF MEASURE

PIECE (PRIMARY) M

Typical pack size: 12 in × step-cut pieces; gauge G22–G30; sold per piece or per linear metre run

GRADE & SPECIFICATION

Press-formed hot-dip galvanised sheet in a U-channel or step profile; used at valleys where two roof planes meet, or as step flashing at wall abutments alongside corrugated deck. The U-roll profile collects water at the valley and channels it to gutters. Not to be confused with Type 1/2 apron flashing.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7210619200 (MEDIUM CONFIDENCE)

OFFICIAL DESCRIPTION Other, corrugated (flat-rolled steel, zinc-coated)

IMPORT DUTY (MFN) 15%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
