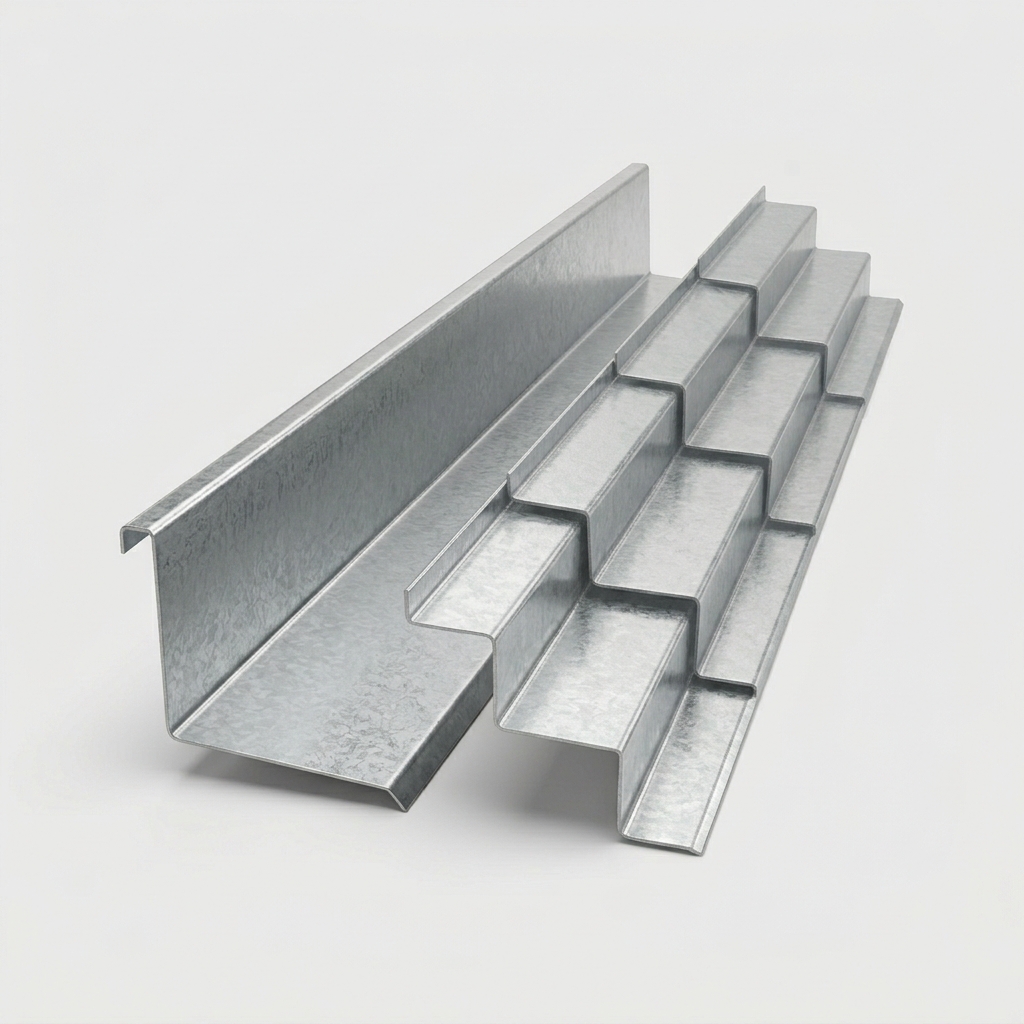

Name: Metal Deck Flashing — GI / Zinc (Apron / Barge / Wall Flashing)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Metal deck flashing in GI or zinc is a purpose-pressed galvanised steel sealing piece that weatherproofs the junction between a metal deck roof and adjacent walls, gable ends, or penetrations in Malaysian construction. Two standard profiles are available: Type 1 (apron/barge) steps over the top of corrugated sheeting at gable ends and wall abutments; Type 2 (counter-flashing) tucks into a masonry chase and overlaps the upstand. Cut lengths are 8 ft (2 438 mm); widths 12 in or 18 in; gauge G22 (0.47 mm) for industrial applications through G32 (0.23 mm) for residential. HS 7210619200 · import duty 15% · SST 5%. Installed with matching gauge to the adjacent roof sheet to ensure consistent lifespan.

UNIT OF MEASURE

PIECE (PRIMARY) M SHEET

Typical pack size: Cut lengths 8 ft (2 438 mm); width 12 in or 18 in; gauge G22 (0.47 mm) – G32 (0.23 mm); Type 1 (apron/barge) and Type 2 (counter-flashing) profiles

GRADE & SPECIFICATION

Press-formed hot-dip galvanised sheet; two standard profiles: Type 1 for barge/apron flashings at gable ends and wall abutments; Type 2 for stepped counter-flashing against masonry walls. Multiple gauges for residential (G28–G32) and industrial (G22–G26) applications.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7210619200 (MEDIUM CONFIDENCE)

OFFICIAL DESCRIPTION Other, corrugated (flat-rolled steel, zinc-coated)

IMPORT DUTY (MFN) 15%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
