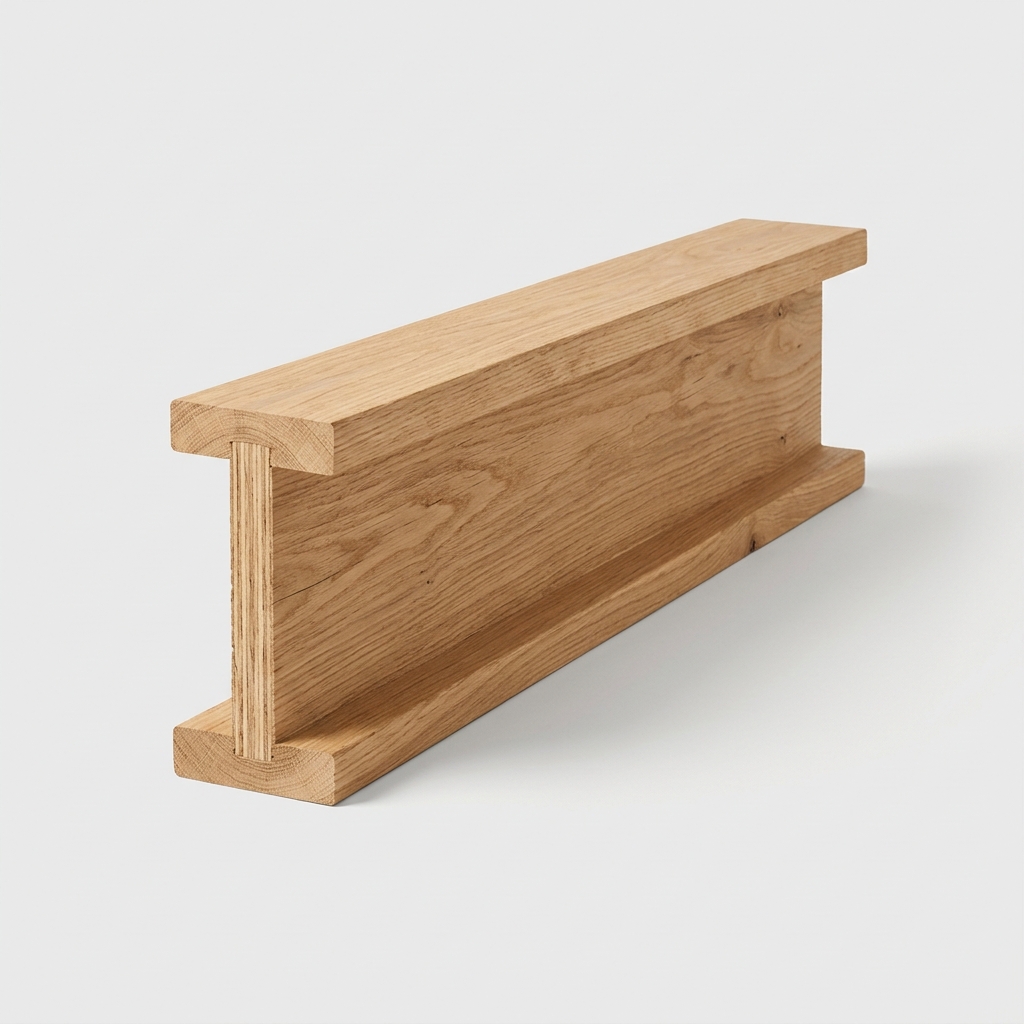

Name: H20 Timber Beam (Formwork Beam)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

H20 timber beam is an engineered I-section formwork beam (200 mm depth) used as primary and secondary support in slab, wall, and beam formwork across Malaysian construction sites. The LVL flanges resist bending; the OSB or plywood web carries shear. Beams slot into U-head jacks on adjustable steel props or shoring towers. Standard lengths from 1.8 m to 5.9 m; typical primary beam span up to 2.4 m on 500–600 mm secondary centres beneath 18 mm forming plywood. Complies with EN 13377:2002 formwork beam specification. Sold per piece; available from formwork system suppliers in Malaysia. HS 4418300000 · import duty 20% · SST 5%.

UNIT OF MEASURE

PIECE (PRIMARY) M SET

Typical pack size: Height: 200 mm; flange width: 80 mm; lengths: 1.8 m, 2.45 m, 2.9 m, 3.3 m, 3.6 m, 3.9 m, 4.5 m, 4.9 m, 5.4 m, 5.9 m

GRADE & SPECIFICATION

H20 = 200 mm height I-section; LVL (Laminated Veneer Lumber) or solid softwood flanges with oriented strand board (OSB) or plywood web. Complies with EN 13377:2002 (Formwork beams — requirements, classification, assessment) and BS EN 13353 (solid wood panels). Bending moment capacity typically 5.5–6.8 kNm.

CLASSIFICATION

UNSPSC 30191801

CIDB CATEGORY Formwork/Falsework (timber beam — under CIS 23:2023 Falsework in Construction; CIDB Fourth Schedule)

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 4418300000 (MEDIUM CONFIDENCE)

OFFICIAL DESCRIPTION Posts and beams other than products of subheadings 4418.81 to 4418.89

IMPORT DUTY (MFN) 20%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
