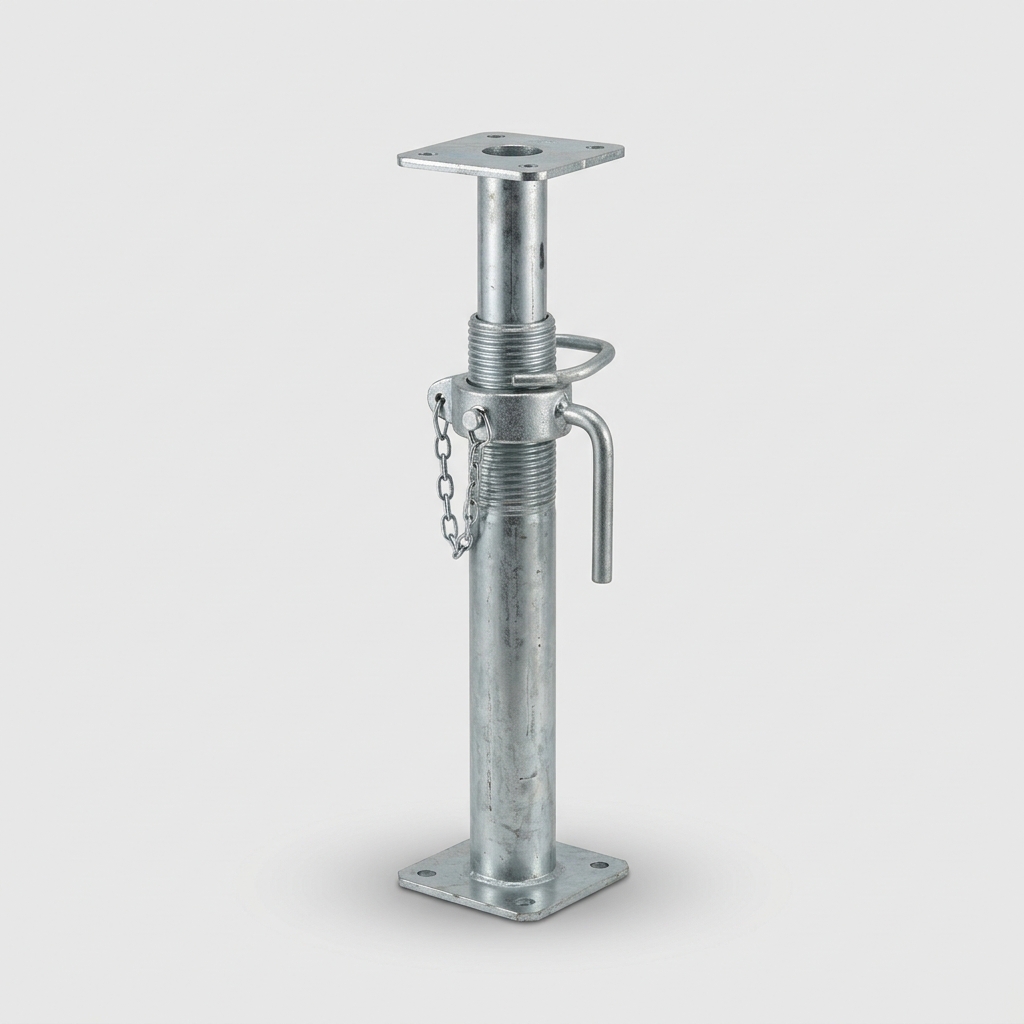

Name: Adjustable Steel Prop (Acrow Prop)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Adjustable steel prop (Acrow prop) is a telescopic steel tube shore used in Malaysian construction to support formwork soffits during concrete pours and to prop existing structures during alteration or demolition works. The outer tube carries the load while the inner tube extends and locks with a pin and wing nut. Sized to BS EN 1065:1999 from Size 0 (1.07–1.82 m) to Size 4 (3.20–4.87 m); nominal characteristic strengths from Class A 9.7 kN to Class E 24.2 kN at maximum extension. Subject to DOSH inspection on construction sites. Always use manufacturer's load tables; never exceed permitted extension ratio. HS 7308409000 · import duty 15% · SST 5%.

UNIT OF MEASURE

PIECE (PRIMARY) SET

Typical pack size: Size grades to BS EN 1065: Size 0 (1.07–1.82 m), Size 1 (1.75–3.12 m), Size 2 (1.98–3.35 m), Size 3 (2.59–3.96 m), Size 4 (3.20–4.87 m); OD outer tube typically 48.3–60.3 mm

GRADE & SPECIFICATION

Telescopic steel tube with threaded outer barrel and inner tube. Complies with BS EN 1065:1999 (Adjustable telescopic steel props — product specifications, design and assessment by calculation and tests). Nominal characteristic strengths per class: Class A (9.7 kN) to Class E (24.2 kN at maximum extension).

CLASSIFICATION

UNSPSC 30191802

CIDB CATEGORY Formwork/Falsework — Slab Shoring Prop (regulated under CIS 23:2023; DOSH BOWEC 1986; BS EN 1065 mandatory standard)

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7308409000

OFFICIAL DESCRIPTION Other

IMPORT DUTY (MFN) 15%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com

QUICK REFERENCE

PRIMARY UOM

piece

TYPICAL PACK SIZE

Size grades to BS EN 1065: Size 0 (1.07–1.82 m), Size 1 (1.75–3.12 m), Size 2 (1.98–3.35 m), Size 3 (2.59–3.96 m), Size 4 (3.20–4.87 m); OD outer tube typically 48.3–60.3 mm
