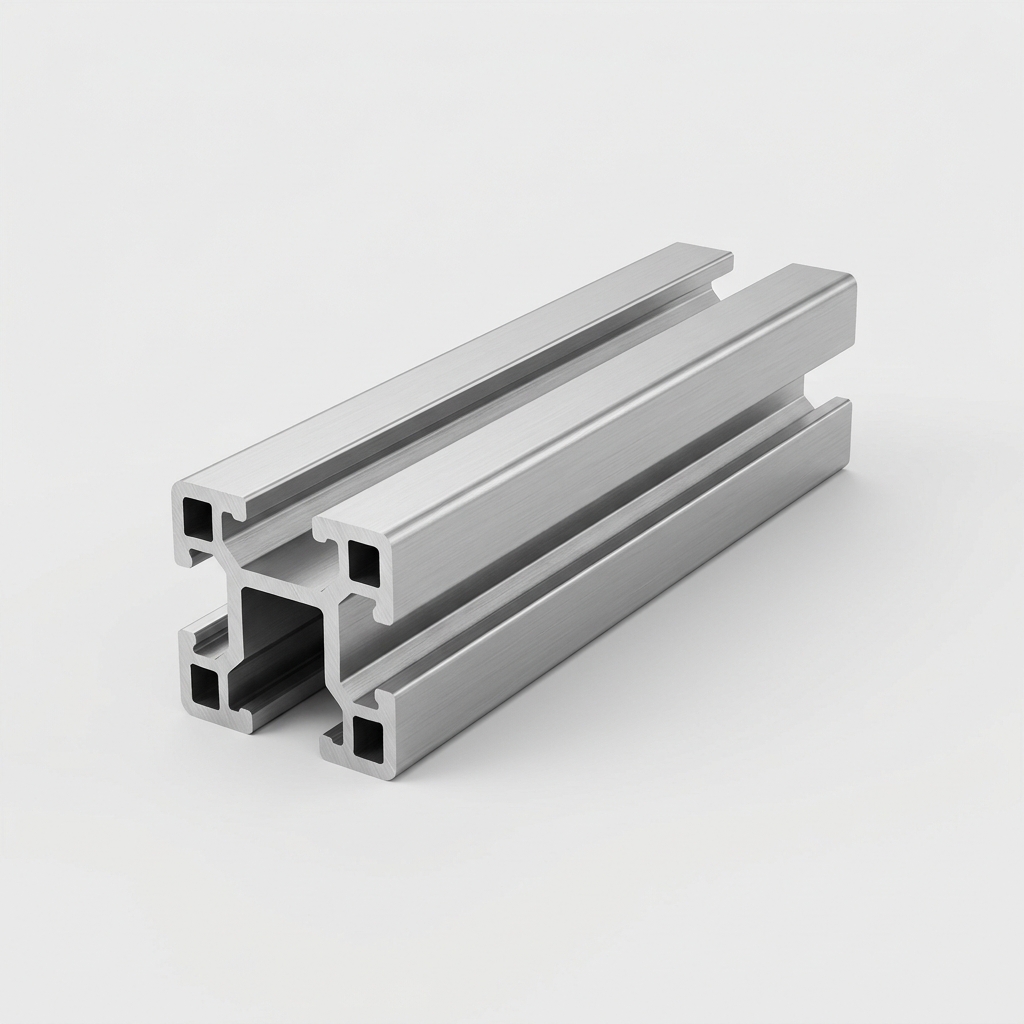

Name: Solar PV Mounting Rail (Aluminium Extrusion)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Aluminium solar PV mounting rails are extruded structural sections that form the backbone of rooftop and ground-mount solar racking systems in Malaysia. Rails attach to roof hooks, ballast blocks, or ground-mount piles and support PV module frames via mid-clamps and end-clamps. Material: aluminium alloy 6005-T5 or 6061-T6 per ASTM B221 or equivalent; anodised finish for tropical climate resistance. Standard lengths 3.3 m or 4.2 m per rail. Sold per metre. Common profiles: C-channel, hat-channel. Also called rel solar or PV mounting rail. HS 7610.109000, import duty 25%, SST 5%.

UNIT OF MEASURE

M (PRIMARY) PIECE UNIT

Typical pack size: Standard lengths 3.3 m or 4.2 m per rail; supplied in bundles

GRADE & SPECIFICATION

Typically aluminium alloy 6005-T5 or 6061-T6 per ASTM B221 or equivalent. Anodised or mill-finish. Load-bearing designed to project-specific wind/snow loading; complies with structural requirements under MS 1553 (Aluminium Alloy Structures) where applicable.

CLASSIFICATION

UNSPSC 26111607

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7610109000 (MEDIUM CONFIDENCE)

OFFICIAL DESCRIPTION Other

IMPORT DUTY (MFN) 25%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
