Name: Mortise Lockset
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

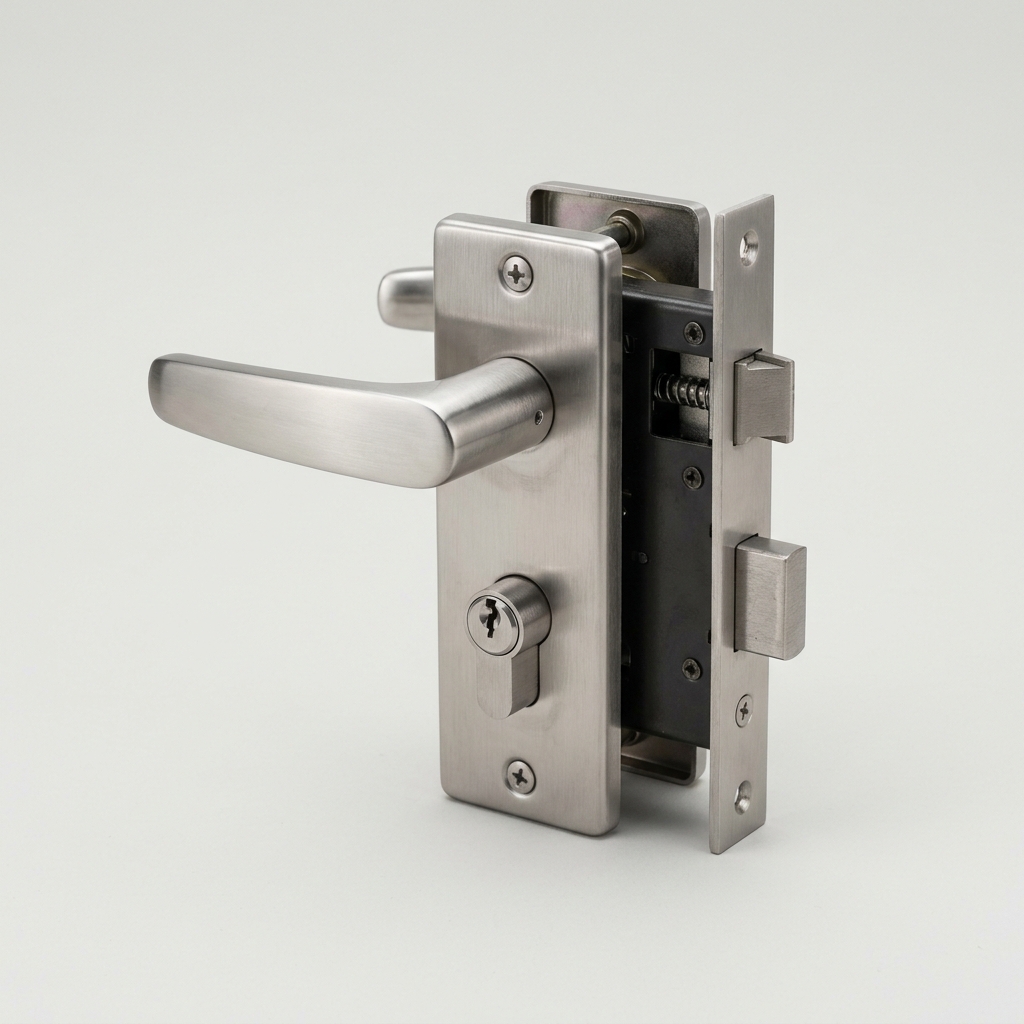

A mortise lockset is installed in a pocket (mortise) cut into the door edge, combining a latchbolt and a deadbolt in a single case. More robust than cylindrical locks; the standard choice for commercial offices, hotel rooms, and quality residential doors in Malaysia. Requires minimum door stile width of 110 mm. Backset 65 mm or 75 mm; case depth 76 mm. Body: zinc alloy die-cast or solid brass; handles: SS304 stainless steel or zinc alloy; cylinder: 6-pin tumbler. Higher specification: BS EN 12209 compliant. Sold per set. Also called kunci mortise or kunci lubang besar. HS 8301.402000, import duty 25%, SST 10%.

UNIT OF MEASURE

SET (PRIMARY) PIECE

Typical pack size: Single set: lock body, 2 rose plates, 2 lever handles (or knobs), strike plate, key cylinder

GRADE & SPECIFICATION

Mortise lock body with latchbolt and deadbolt. Backset 65 mm or 75 mm; case depth 76 mm standard. Body: zinc alloy die-cast or solid brass. Handles: grade SS304 stainless steel or zinc alloy. Key cylinder: 6-pin tumbler or double-cylinder. Higher specification: ANSI Grade 2 equivalent or BS EN 12209 compliant.

CLASSIFICATION

UNSPSC 30171514

CIDB CATEGORY Door Hardware and Ironmongery

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 8301402000

OFFICIAL DESCRIPTION Door locks

IMPORT DUTY (MFN) 25%

SST 10%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
