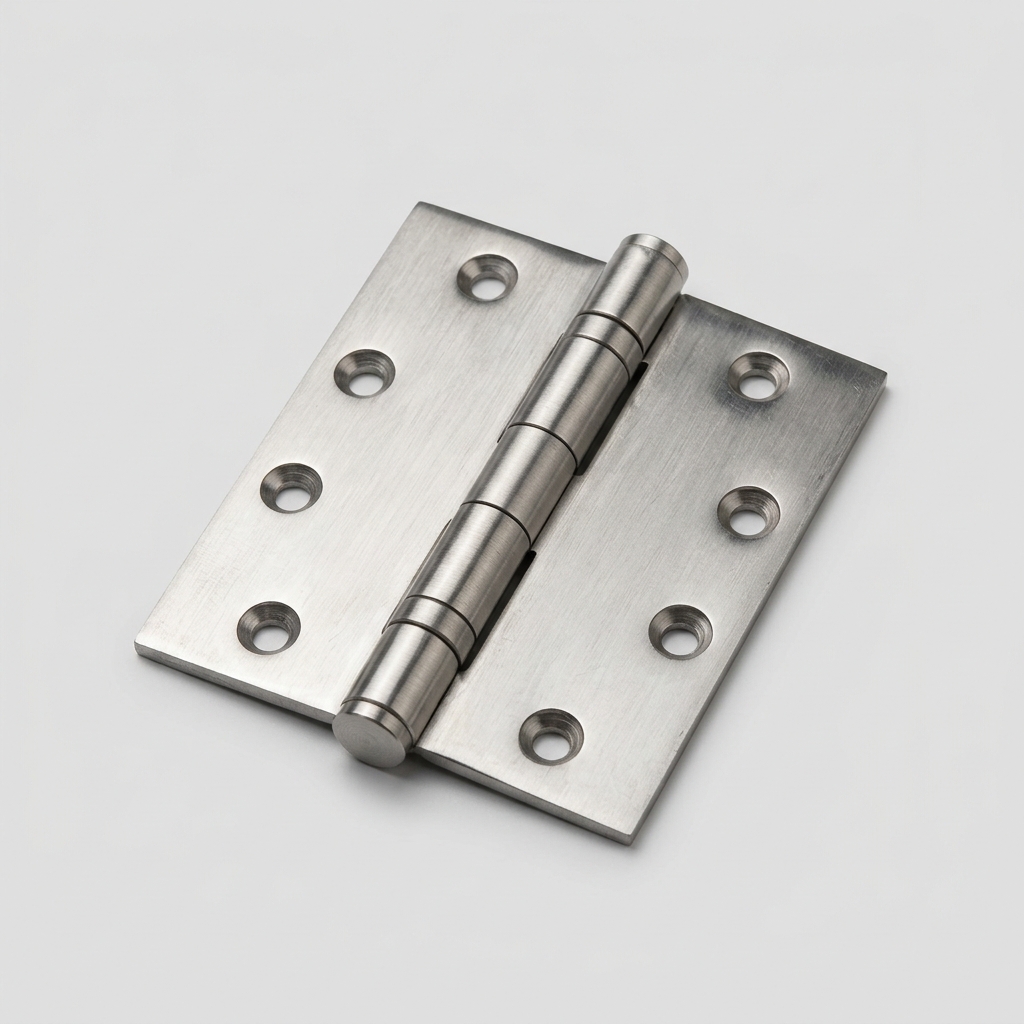

Name: Door Butt Hinge (Stainless Steel)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Door butt hinges are the standard pivot mechanism for all swinging doors in Malaysia. SS304 stainless steel is preferred for corrosion resistance in the humid tropical climate. Leaf thickness 2.5-3.0 mm; load rating 80 kg per pair (3-knuckle) or 100 kg per pair (4-knuckle). Standard sizes: 100 mm x 75 mm, 100 mm x 100 mm, 125 mm x 75 mm. Minimum per door: 3 hinges residential, 5 for fire-rated doorsets per MS 1601. Ball-bearing knuckles for commercial and high-traffic doors. Fire-door hinges must be steel only per MS 1601. Sold per piece. Also called engsel pintu or engsel rata. HS 8302.100000, import duty 15%, SST 5%.

UNIT OF MEASURE

PIECE (PRIMARY) SET PAIR

Typical pack size: Individual hinge; standard sizes: 100 mm × 75 mm, 100 mm × 100 mm, 125 mm × 75 mm; sold per piece or per set (typically 3 per door)

GRADE & SPECIFICATION

Butt hinge with knuckle; material SS304 stainless steel (preferred, corrosion-resistant) or mild steel zinc-plated. Ball-bearing knuckle for heavy or high-frequency use. Leaf thickness 2.5–3.0 mm. Load rating: 3-knuckle hinge 80 kg/pair, 4-knuckle 100 kg/pair. Fire-door hinges must be steel (no aluminium) per MS 1601 / fire door requirements.

CLASSIFICATION

UNSPSC 30171514

CIDB CATEGORY Door Hardware and Ironmongery

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 8302100000

OFFICIAL DESCRIPTION Hinges

IMPORT DUTY (MFN) 15%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
