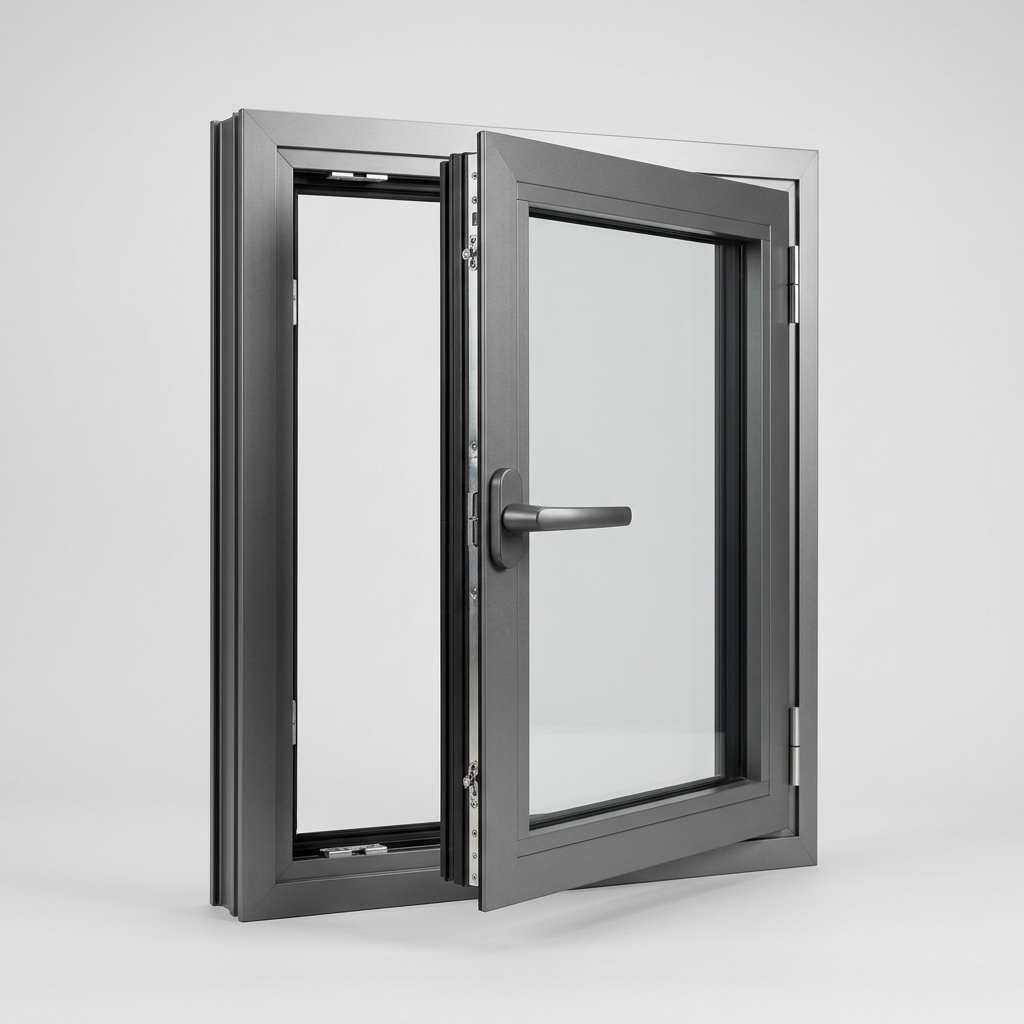

Name: Aluminium Casement Window System
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Aluminium casement window systems are hinged-sash assemblies where the leaf swings outward from a side hinge (casement) or top hinge (awning), providing natural ventilation in Malaysian terrace houses and condominiums. Systems comply with MS 832:2022; CIDB PPS compliance mandatory since September 2023. Profile extrusion meets MS 1597. Single-leaf opening: W600-W1200 mm x H600-H1500 mm; double-leaf and combination units available. Glazing bead accommodates glass 4-12 mm. Finish: powder-coated or mill finish. Sold per set. Also called tingkap casement or tingkap engsel aluminium. HS 7610.109000, import duty 25%, SST 5%.

UNIT OF MEASURE

SET (PRIMARY) M²

Typical pack size: Single leaf typical: W600–W1200 mm × H600–H1500 mm; double-leaf and combination units available

GRADE & SPECIFICATION

Profile to MS 1597. System to MS 832:2022 (Specification for aluminium windows). Powder-coated or mill finish. Glazing bead accommodates glass from 4 mm to 12 mm.

CLASSIFICATION

UNSPSC 30171606

CIDB CATEGORY Aluminium Doors, Windows and Curtain Walls (CIDB mandatory PPS compliance under MS 832:2022 effective September 2023)

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7610109000

OFFICIAL DESCRIPTION Other

IMPORT DUTY (MFN) 25%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
