Name: XLPE/SWA/PVC Armoured Power Cable 0.6/1 kV
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

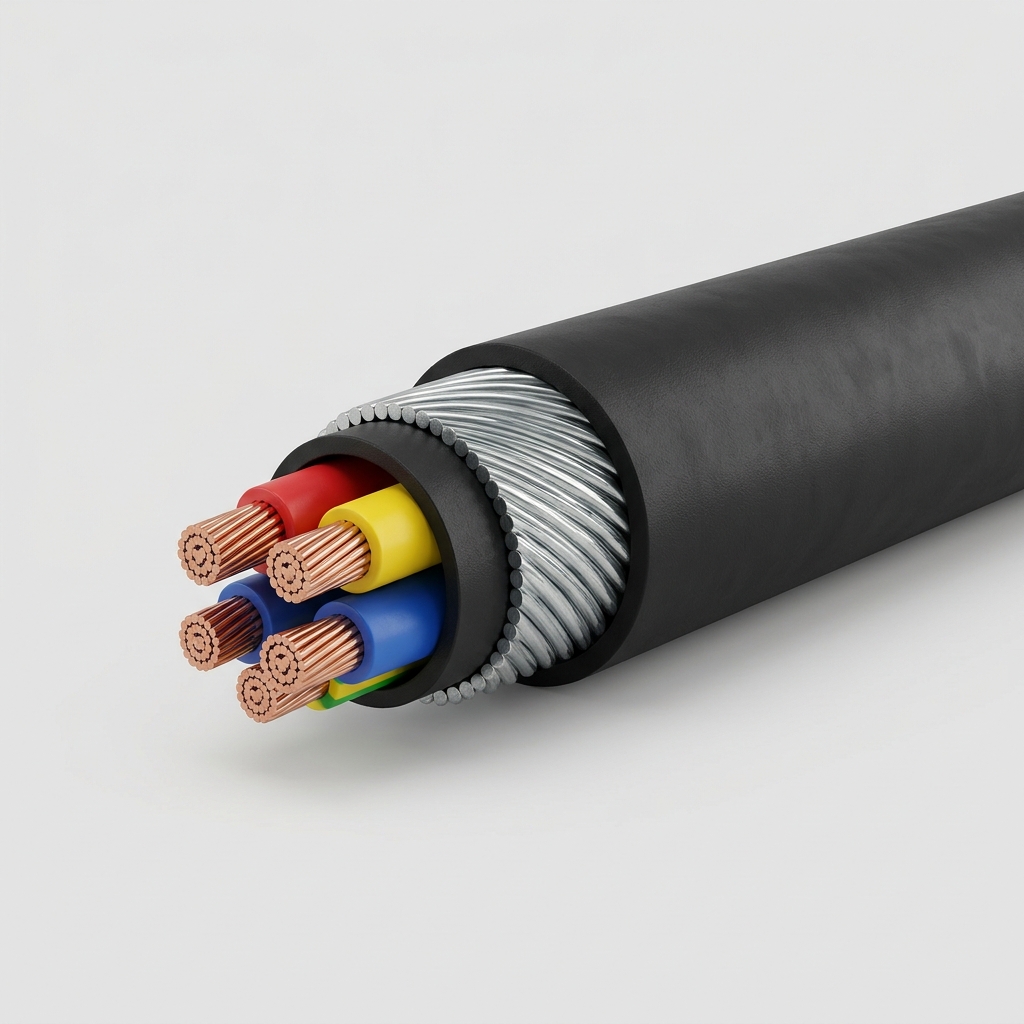

XLPE/SWA/PVC armoured power cable (0.6/1 kV) is used for main power distribution, underground burial, and mechanically exposed outdoor cable runs in Malaysian commercial and industrial construction. Construction: stranded copper conductor, XLPE insulation, PVC bedding, galvanised steel wire armour (SWA), and PVC outer sheath. Complies with MS 2107:2007 (multicore) and MS 2105:2007 (single core), both equivalent to IEC 60502-1. Sizes 4-300 mm², supplied on drums of 100-500 m. Also known as kabel perisai or underground cable. HS 8544492200 · duty 30% · SST 10%.

UNIT OF MEASURE

METRE (PRIMARY) ROLL

Typical pack size: Drum lengths: typically 100 m, 200 m, 500 m. Sizes: 4 mm² to 300 mm² single or multicore.

GRADE & SPECIFICATION

Stranded copper (or aluminium) conductor, XLPE insulated, PVC bedded, galvanised steel wire armoured (SWA) or aluminium wire armoured (AWA), PVC sheathed. Rated 0.6/1 kV to MS 2107:2007 (multicore) / MS 2105:2007 (single core), both equivalent to IEC 60502-1. Suitable for direct burial, cable ducts, and outdoor exposed runs.

CLASSIFICATION

UNSPSC 26121524

CIDB CATEGORY Electrical power cable — MS 2107:2007 (multicore) / MS 2105:2007 (single core); IEC 60502-1; SIRIM certification

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 8544492200

OFFICIAL DESCRIPTION Electric cables insulated with plastics, of which each core having diameter not exceeding 19.5 mm

IMPORT DUTY (MFN) 30%

SST 10%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
