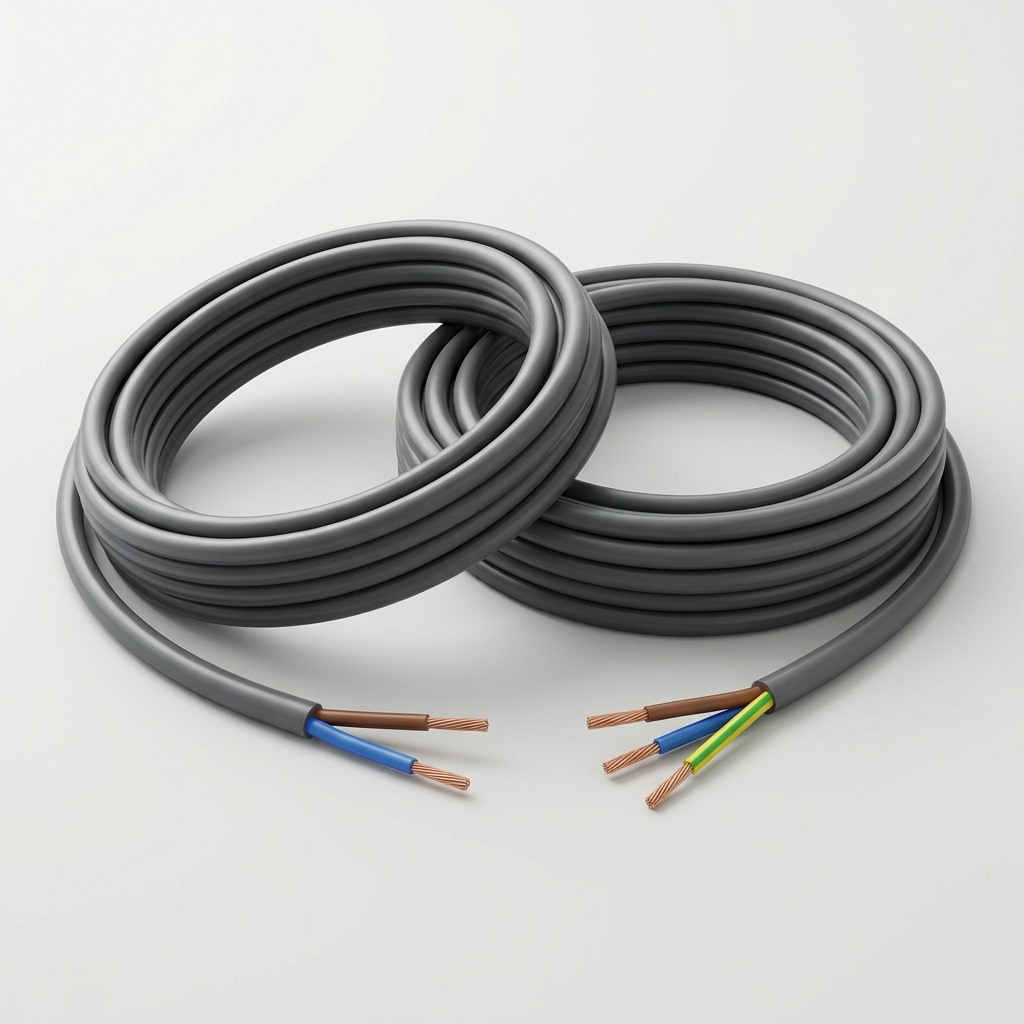

Name: PVC Insulated Flexible Cord 2-Core / 3-Core 300/500 V
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

PVC flexible cord (300/500 V) consists of finely stranded copper conductors with PVC insulation and sheath, used to connect portable electrical appliances, luminaires, and extension leads in Malaysian buildings. 2-core for double-insulated unearthed equipment; 3-core where earth is required. Rated to MS 2112-5:2009 (IEC 60227-5). Sizes 0.75 mm² (light-duty luminaires) to 2.5 mm²; sold in 100 m rolls. Also known as kord fleksibel or appliance cord. SIRIM certification required. HS 8544492200 · duty 30% · SST 10%.

UNIT OF MEASURE

METRE (PRIMARY) ROLL

Typical pack size: 100 m roll. Sizes: 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm².

GRADE & SPECIFICATION

Finely stranded copper conductor, PVC insulated, PVC sheathed flexible cable rated 300/500 V to MS 2112-5:2009 (Electric cable and wire — PVC insulated — Part 5: Flexible cables), equivalent to IEC 60227-5. 2-core for ungrounded double-insulated appliances; 3-core for earthed appliances. Minimum 0.75 mm² for light-duty luminaires; 1.5 mm² for higher-power appliances.

CLASSIFICATION

UNSPSC 26121545

CIDB CATEGORY Electrical cable/wire — MS 2112-5:2009; SIRIM certification required

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 8544492200 (MEDIUM CONFIDENCE)

OFFICIAL DESCRIPTION Electric cables insulated with plastics, of which each core having diameter not exceeding 19.5 mm

IMPORT DUTY (MFN) 30%

SST 10%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
