Name: PVC Insulated & Sheathed Twin-and-Earth (T&E) Flat Cable 300/500 V
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

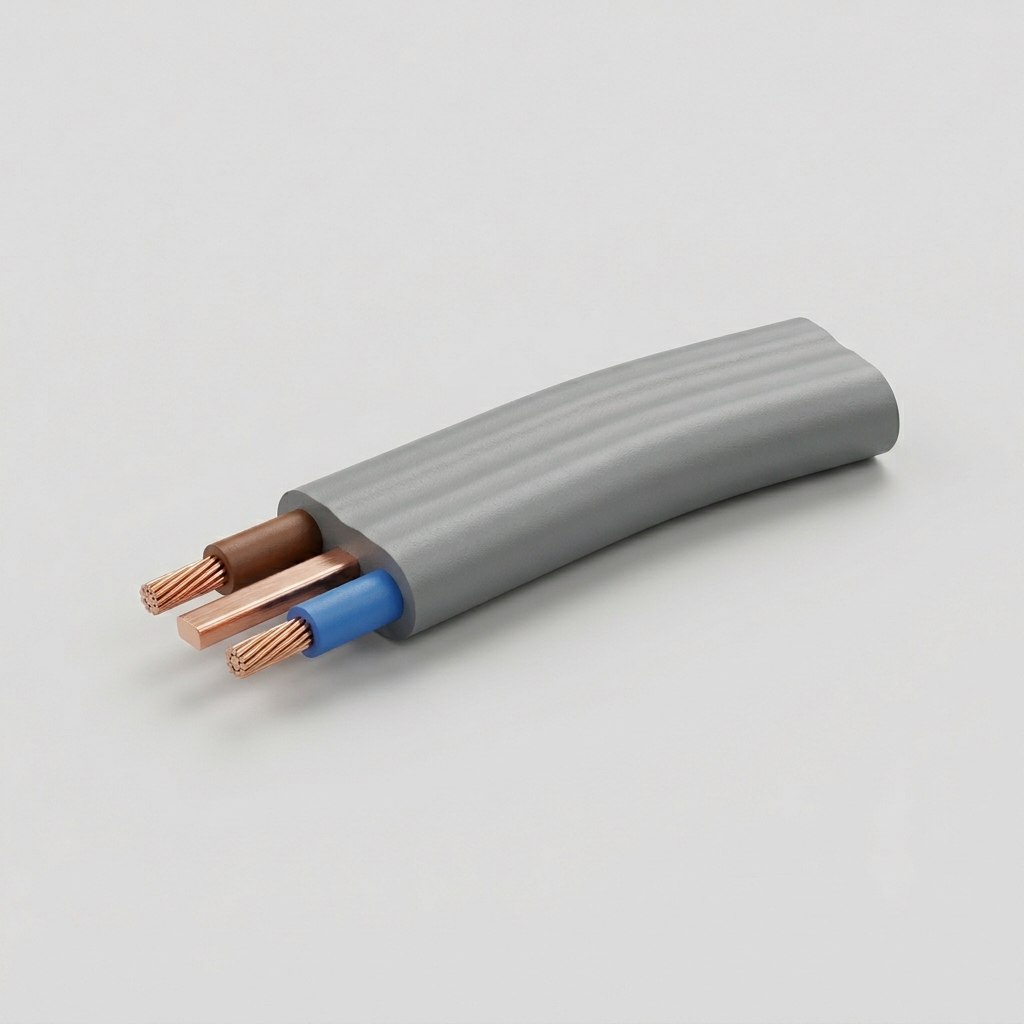

Twin-and-earth (T&E) flat cable (300/500 V) is the standard concealed-wiring cable for domestic and light-commercial electrical installations across Malaysia. Two PVC-insulated copper conductors (live and neutral) plus a bare earth conductor, enclosed in a grey PVC flat sheath. Rated to MS 2112-4:2009 (IEC 60227-4). Use 1.5 mm² for lighting circuits and 2.5 mm² for ring-main and radial socket-outlet circuits. Available in 50 m and 100 m rolls. SIRIM certification required. Also known as kabel pipih or kabel T&E. HS 8544492200 · duty 30% · SST 10%.

UNIT OF MEASURE

METRE (PRIMARY) ROLL

Typical pack size: 50 m, 100 m roll. Sizes: 1.0 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm².

GRADE & SPECIFICATION

Copper conductor, PVC insulated, PVC sheathed flat cable with bare earth conductor, rated 300/500 V to MS 2112-4:2009 (Electric cable and wire — PVC insulated — Part 4: Sheathed cables for fixed wiring), equivalent to IEC 60227-4. 1.5 mm² for lighting circuits; 2.5 mm² for ring-main and radial power circuits.

CLASSIFICATION

UNSPSC 26121524

CIDB CATEGORY Electrical cable/wire — MS 2112-4:2009; SIRIM certification required for regulated products

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 8544492200

OFFICIAL DESCRIPTION Electric cables insulated with plastics, of which each core having diameter not exceeding 19.5 mm

IMPORT DUTY (MFN) 30%

SST 10%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
