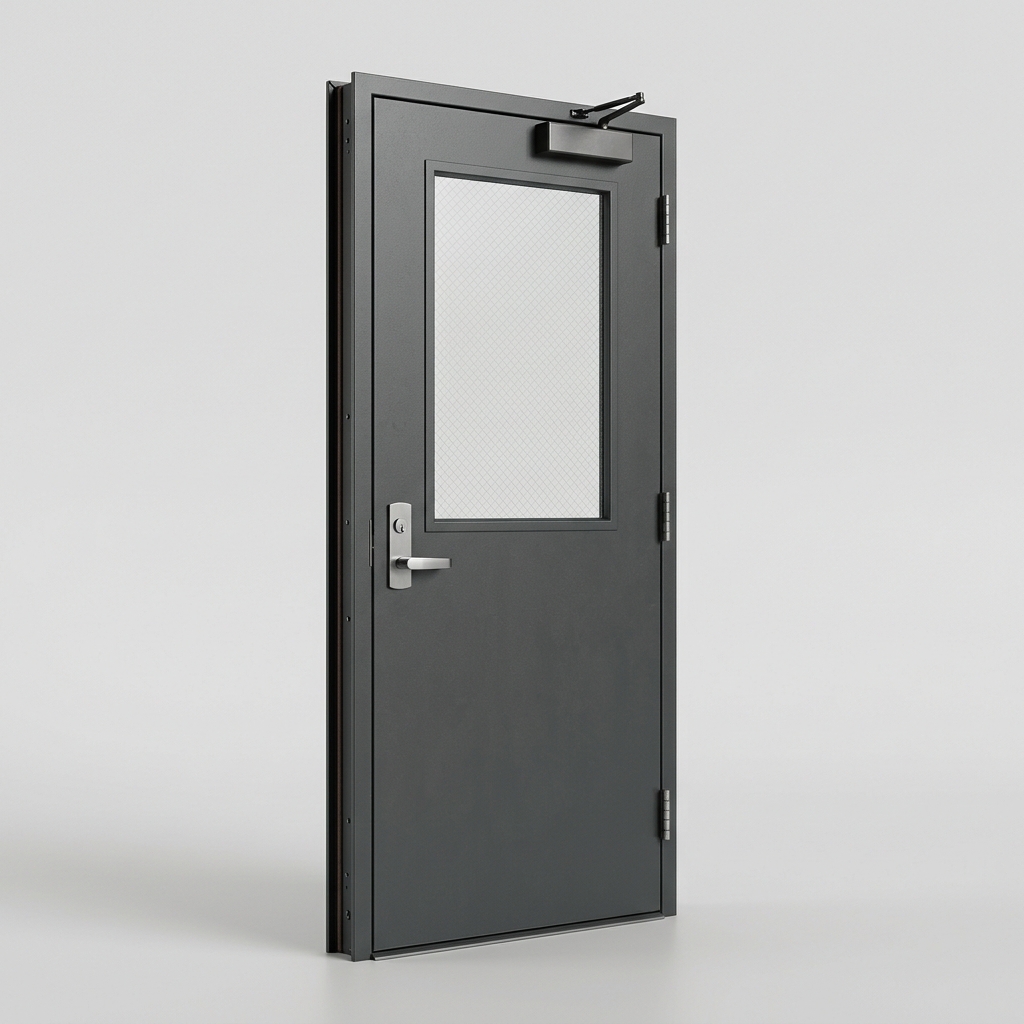

2-Hour Fire-Rated Doorset (Steel Frame)
FIRE-RATED DOOR
2 hour fire door 120-minute fire door FRD 120 pintu tahan api 2 jam 防火门 2 小时 steel fire door FD120 fire rated steel door
PRODUCT INDEX / DOORS, WINDOWS & GLASS
FIRE-RATED DOOR
A 2-hour fire-rated steel doorset (FD120) provides 120-minute fire and smoke resistance -- tested to 135 minutes -- per MS 1073: Part 3:1996. Required in high-risk compartmentation walls: car park to building interfaces, plant rooms, and between fire compartments in Malaysian high-rise buildings. Steel-faced construction with mineral wool insulation offers higher structural integrity under fire loading than timber-frame equivalents. Leaf: 60 mm thick, single-leaf W900 x H2100 mm typical. Must carry SIRIM MS Mark and BOMBA Sijil Perakuan. Sold per set. Also called pintu tahan api 2 jam or FD120. HS 7308.309000, import duty 15%, SST 5%.
Typical pack size: Single-leaf: W900 mm × H2100 mm × 60 mm typical; double-leaf for wider openings
Fire resistance 120 minutes to MS 1073: Part 3: 1996 (Amd.1:2003), tested per BS 476: Part 20 & 22. Steel-faced construction with mineral wool insulation. Thicker leaf (60 mm) vs. 1-hour door. SIRIM MS Mark and BOMBA Sijil Perakuan mandatory. Certified door closer and panic hardware where required.
PRIMARY UOM
set
TYPICAL PACK SIZE
Single-leaf: W900 mm × H2100 mm × 60 mm typical; double-leaf for wider openings
CATEGORY
Doors, Windows & GlassUNSPSC
30171523
