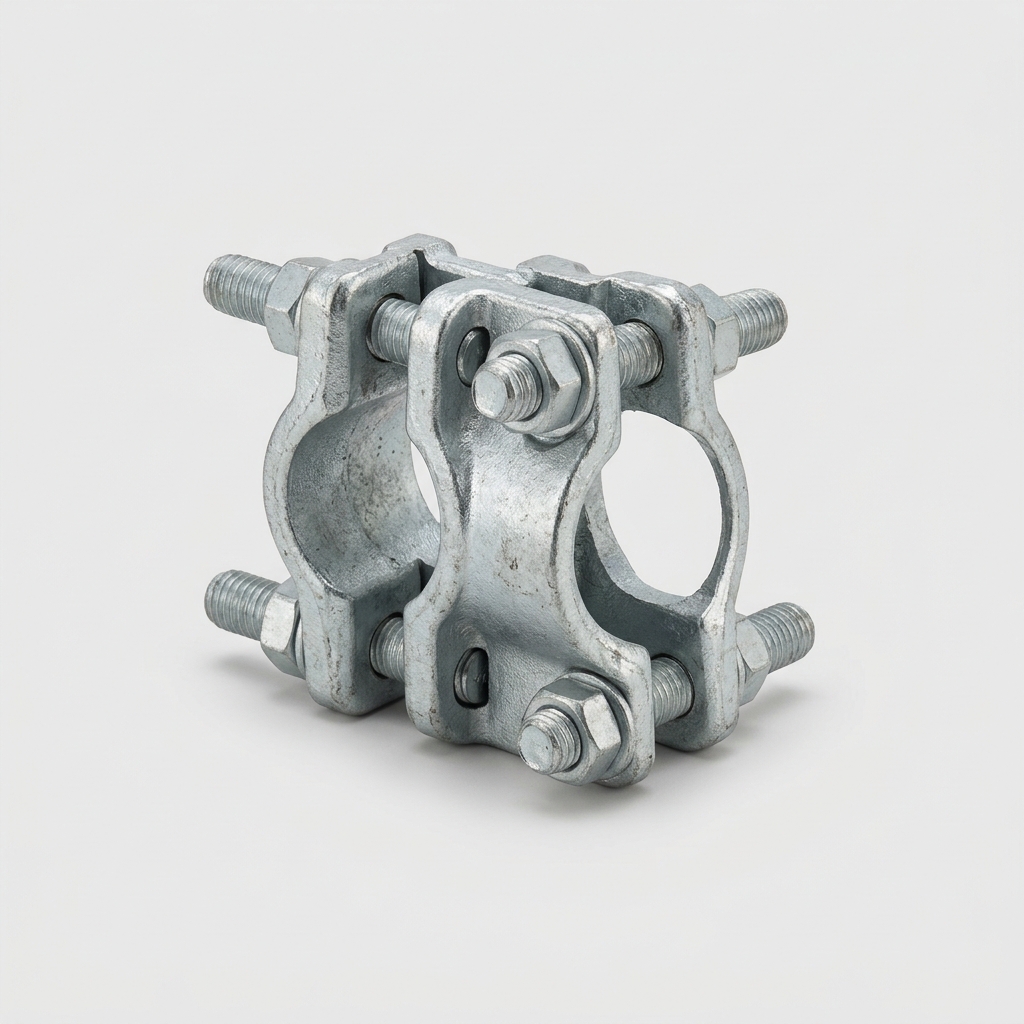

Name: Scaffold Coupler / Clamp (Right Angle + Swivel)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Scaffold coupler (clamp) is the connecting fitting used in tube-and-coupler scaffolding to join 48.3 mm steel tubes at fixed or variable angles on Malaysian construction sites. Right-angle (fixed) couplers connect perpendicular tubes at 90°; swivel couplers allow any angle for bracing and raker tubes; putlog couplers connect a horizontal tube to a board bearer. All are hot-dip galvanised drop-forged steel. Right-angle and swivel types comply with BS EN 74-1:2005; minimum slip resistance 6.1 kN per coupler. Also referenced under MS 1462:2012. Sold per piece. HS 7308409000 · import duty 15% · SST 5%.

UNIT OF MEASURE

PIECE (PRIMARY) SET

Typical pack size: Individual piece; fits OD 48.3 mm tube. Weight: right-angle ~1.1 kg; swivel ~1.3 kg

GRADE & SPECIFICATION

Hot-dip galvanised drop-forged steel. Complies with BS EN 74-1:2005 (couplers for steel scaffolding — right angle and swivel). Minimum slip resistance 6.1 kN (right angle); 6.1 kN (swivel). Load capacity typically 6–6.25 kN per coupler.

CLASSIFICATION

UNSPSC 30191611

CIDB CATEGORY Scaffolding — Accessories (regulated under CIS 22:2021; MS 1462:2012)

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7308409000 (MEDIUM CONFIDENCE)

OFFICIAL DESCRIPTION Other

IMPORT DUTY (MFN) 15%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
