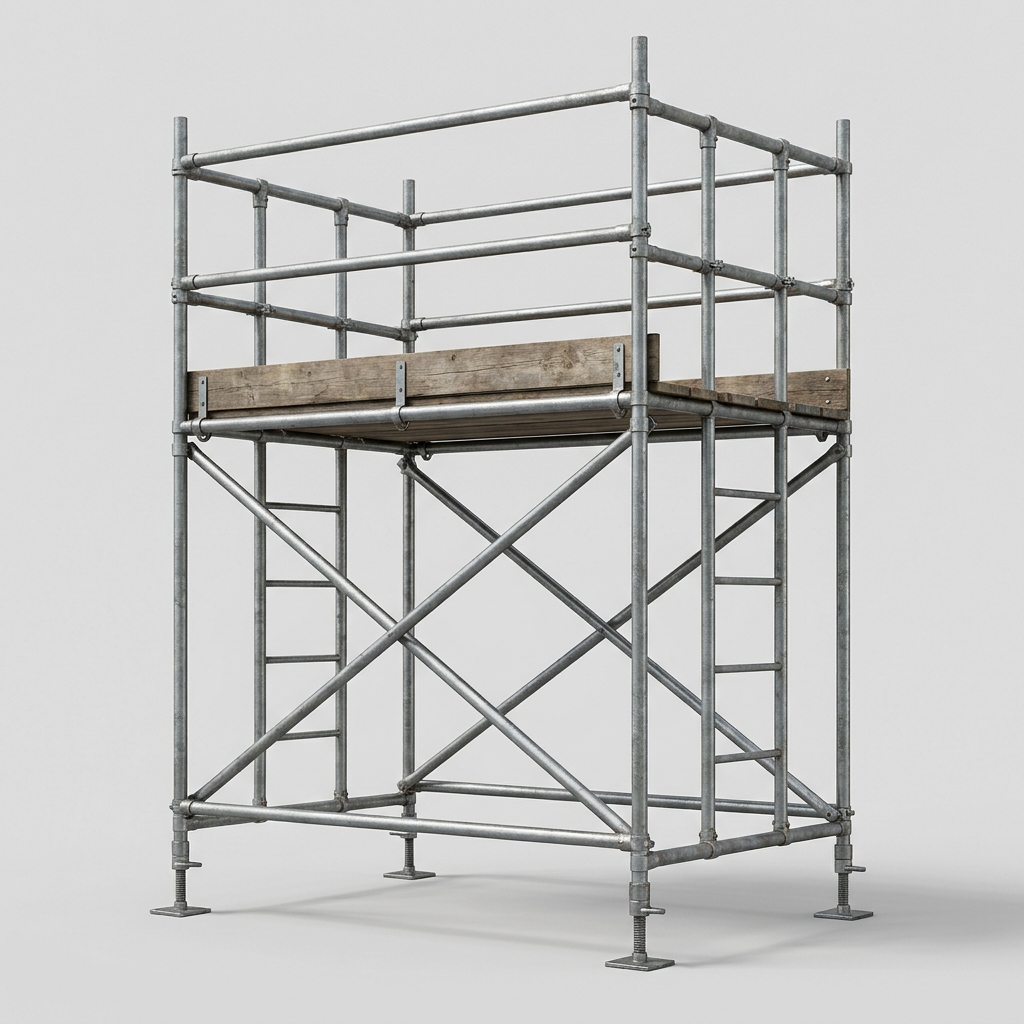

Name: H-Frame / Tubular Frame Scaffold Set
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

H-frame (tubular frame) scaffold set is a light-to-medium-duty access scaffold system used for plastering, painting, tiling, and façade work on Malaysian construction sites. The system assembles welded steel H-frames, cross braces, base plates, and guardrails into load-bearing bays rated at ≥270 kg per bay. Frame OD is typically 38 mm or 48.3 mm; standard widths are 1.219 m (4 ft) or 1.524 m (5 ft) at 1.7 m or 2.0 m lift heights. Complies with MS 1462:2012 and BS EN 12811-1:2003. Must be erected by a DOSH-recognised competent person under BOWEC Regulations 1986. Sold per set inclusive of frames, braces, and base plates. HS 7308.40 · import duty 15% · SST 5%.

UNIT OF MEASURE

SET (PRIMARY) PIECE FRAME

Typical pack size: Set: typically 1.219 m (4 ft) or 1.524 m (5 ft) wide × 1.7 m or 2.0 m height per frame; sold in sets of frames + cross braces + base plates

GRADE & SPECIFICATION

Steel tubing complying with BS 1139-1 or MS 1462:2012 (Metal Scaffolding). Frame OD typically 38 mm or 48.3 mm. Load rating per BS EN 12811-1:2003 performance requirements. Heavy-duty grade rated ≥270 kg per bay.

CLASSIFICATION

UNSPSC 30191605

CIDB CATEGORY Scaffolding (metal scaffold — regulated under CIS 22:2021 Safe Use of Scaffolding; Fourth Schedule CIDB Act 520)

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 7308409000

OFFICIAL DESCRIPTION Other

IMPORT DUTY (MFN) 15%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
