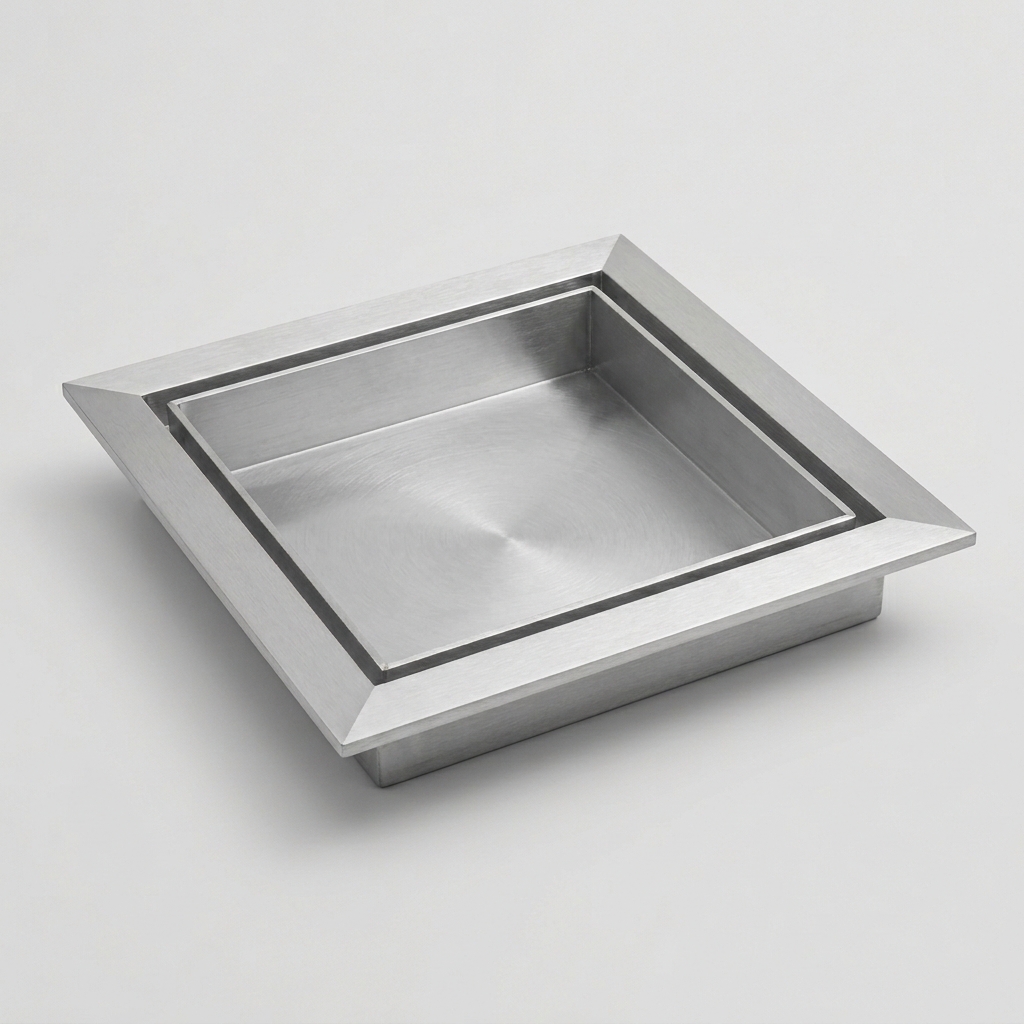

Name: Aluminium Manhole Frame (Tile Access Panel)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

Aluminium extruded manhole frames (tile access panels) are installed at floor level to create concealed access to drainage clean-outs, floor trap inspection points, and under-slab services in tiled areas. The hollow frame is filled with tile or mosaic cut to size, making the access panel invisible once grouted. Available in sizes from 12" × 12" (305 × 305 mm) to 24" × 24" (610 × 610 mm); frame depth typically 25 mm to accommodate a single tile layer. Standard in Malaysian bathrooms, kitchens, and common corridors where an uninterrupted tile finish is required.

UNIT OF MEASURE

UNIT (PRIMARY)

Typical pack size: Common sizes: 12" × 12" (305 × 305 mm), 12" × 18" (305 × 457 mm), 12" × 24" (305 × 610 mm), 18" × 18", 18" × 24", 24" × 24"

GRADE & SPECIFICATION

Extruded aluminium alloy frame designed to accept a tile or mosaic infill panel. Frame depth typically 25 mm to allow a single tile layer. No specific MS standard; selected to suit floor tile or mosaic thickness.

TAX — INDICATIVE ONLY

Goods — indicatively subject to SST at applicable rate; confirm with licensed tax agent.

Suggested SST treatment — indicative only. Confirm with your licensed tax agent. Tax positions change and this is not a tax ruling. ttkbuildingmaterials.com accepts no liability for tax decisions made in reliance on this information. Spotted anything wrong in this listing (spec, classification code, or tax)? Email hello@ttkbuildingmaterials.com and we will review it.
