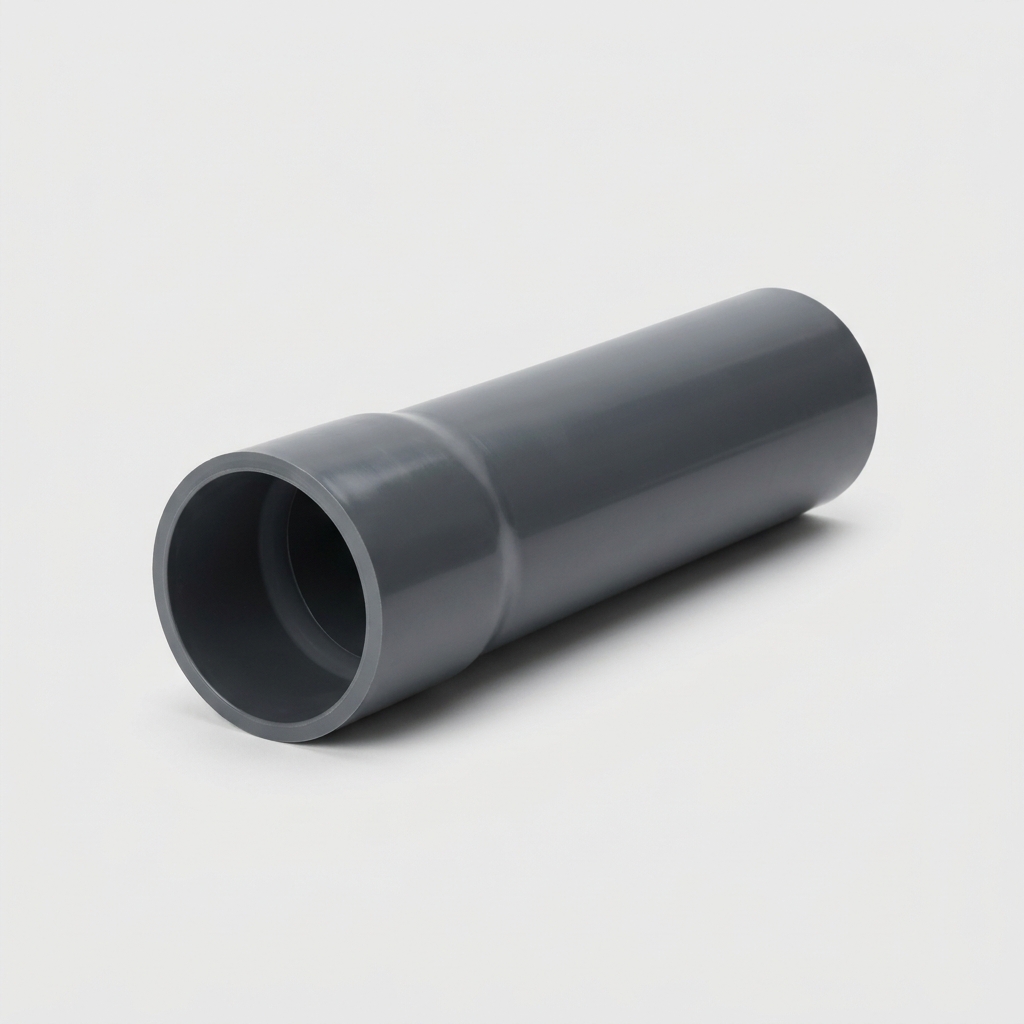

Name: uPVC Pressure Pipe Class E (MS 628 / BS 3505)
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

uPVC Pressure Pipe Class E is an unplasticised PVC pipe rated PN 15 (15 bar working pressure) for cold-water supply in Malaysian residential and light commercial plumbing. It is made to MS 628-2:2014; older catalogues cite MS 628: Part 1: 1999 and BS 3505:1986. Ask the supplier for a SIRIM QAS product certificate. Supplied in 5.8 m lengths; nominal diameters range from 15 mm to 300 mm with common residential sizes at 20 mm, 25 mm, 32 mm, and 50 mm. Joints are made with solvent cement or compression fittings. Class E is the standard pressure class for domestic cold-water distribution; Class D (PN 12) is used for lower-pressure runs. Known locally as paip PVC kelas E or paip air PVC. HS 3917230000 · import duty 20% · SST 5%.

UNIT OF MEASURE

LENGTH (PRIMARY) M

Typical pack size: 5.8 m/length; diameters 15 mm to 300 mm

GRADE & SPECIFICATION

Class E (PN 15) to MS 628-2:2014 (older catalogues: MS 628: Part 1: 1999 / BS 3505:1986). Common sizes: 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 65 mm, 80 mm, 100 mm. Ask the supplier for a SIRIM QAS product certificate.

CLASSIFICATION

UNSPSC 40171517

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 3917230000

OFFICIAL DESCRIPTION Of polymers of vinyl chloride

IMPORT DUTY (MFN) 20%

SST 5%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
