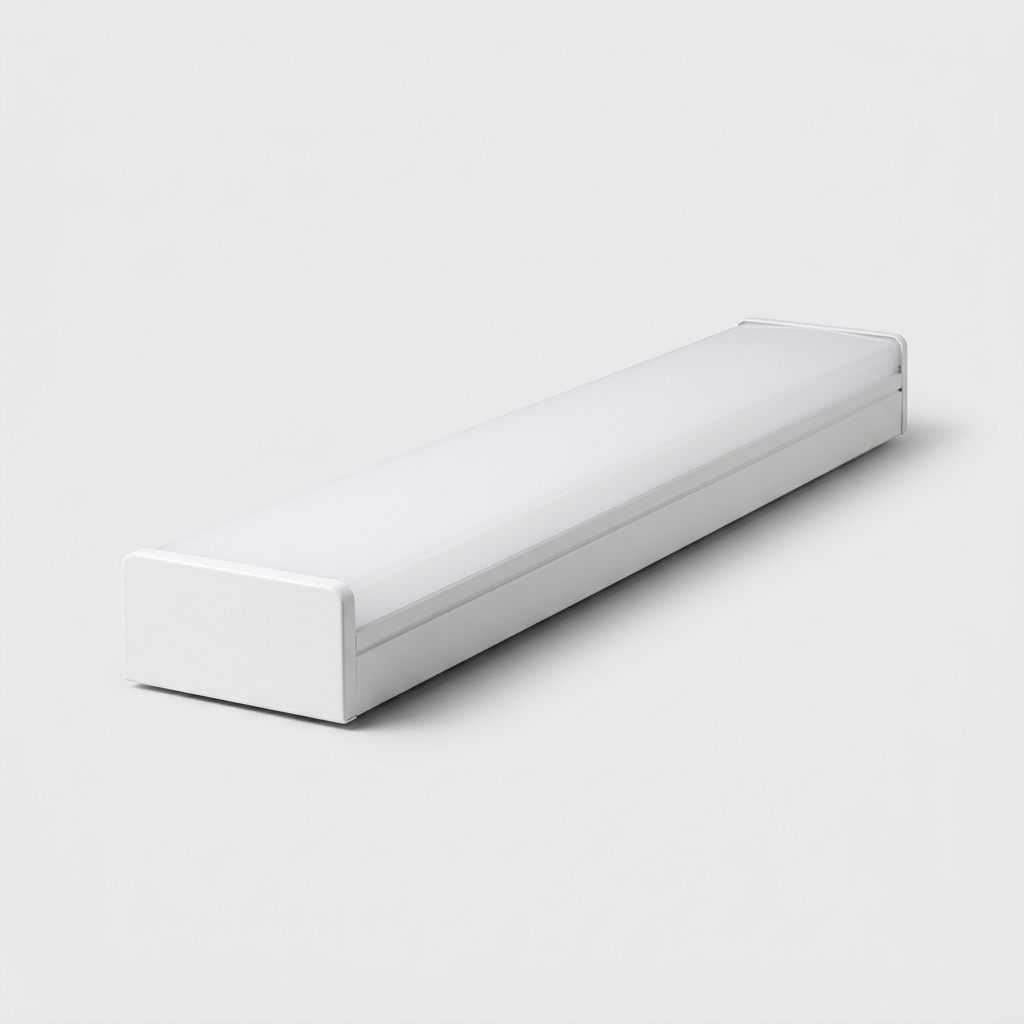

Name: LED Batten Light 4 ft (1200 mm) Surface-Mounted
Brand: ttkbuildingmaterials.com Product Index
Availability: InStock

WHAT IT IS

LED batten light 4 ft (1200 mm) surface-mounted is a linear luminaire that replaces fluorescent tube batten fittings, most commonly the 36 W T8 fluorescent, in Malaysian offices, carparks, storerooms, workshops, and factory floors. Integrated LED — no separate tube required. Typical output: 18-22 W, 2,000 lm or more. Complies with MS IEC 60598-1:2012. SIRIM certification required. IP20 (indoor) or IP65 (weatherproof variant). CRI 80 or higher; rated life 30,000+ hours. Also known as LED日光灯支架 or surface batten. HS 9405199900 · duty 20% · SST 10%.

UNIT OF MEASURE

PIECE (PRIMARY)

Typical pack size: Individual unit. Standard lengths: 2 ft (600 mm), 4 ft (1200 mm), 5 ft (1500 mm). Wattages: 4 ft — 18 W, 20 W, 22 W.

GRADE & SPECIFICATION

Surface-mounted LED batten luminaire to MS IEC 60598-1:2012 (Luminaires — general requirements) and MS IEC 60598-2-1 (Fixed general purpose luminaires). SIRIM certification required. IP20 (indoor) or IP65 (weatherproof variant). CRI ≥80. Output ≥2,000 lm (4 ft / 18 W). Replaces 36 W T8 fluorescent tube fittings.

CLASSIFICATION

UNSPSC 39111533

CIDB CATEGORY Electrical luminaire (surface-mounted batten) — MS IEC 60598-1:2012; SIRIM certification

UNSPSC codes are issued by the United Nations Global Marketplace (UNGM). CIDB categories are defined by Malaysia's Construction Industry Development Board. These codes are informational — use them to verify, not replace, procurement classification.

TARIFF & TAX — PDK 2025

HS CODE (AHTN) 9405199900

OFFICIAL DESCRIPTION Other

IMPORT DUTY (MFN) 20%

SST 10%

Sourced from PDK 2025 (Customs Duties Order 2025). The import duty shown is the MFN / general rate — preferential rates under FTAs (ATIGA, ACFTA, etc.) are typically lower or zero. SST per the PDK 2025 schedule (a value like 10%/0% means standard/exempt variants). Indicative only — confirm the applicable rate and tax treatment with your licensed customs/tax agent before relying on it. Spotted an error? hello@ttkbuildingmaterials.com
